Water Meter Pit

Water Meter Pit

Water Meter Pit

$102.32


FREE SHIPPING
SKU D1200-DIRB

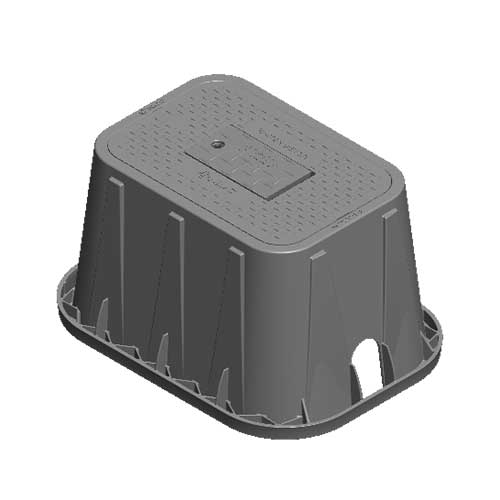

The D1200-DIRB Water Meter Pit provides reliable, long-lasting protection for underground water meters while allowing convenient access for utility professionals. Designed with weather-resistant construction, this pit box ensures dependable performance in a variety of outdoor environments.

Measuring 14" wide × 19" long × 12" high, the rectangular D1200-style pit features a matching black drop-in cover with a built-in plastic reader port. This design allows quick meter readings without the need to remove the lid, streamlining inspections and maintenance.

Built for residential, commercial, and municipal use, the D1200-DIRB Water Meter Pit is a durable and cost-effective solution for safeguarding water meters in any setting.

Key Features
Dimensions: 14" W × 19" L × 12" H
Style: Black rectangular D1200-style pit
Cover: Black drop-in lid with plastic reader port for easy readings
Durability: Weather-resistant construction for long service life
Applications: Perfect for residential, commercial, and municipal water systems

Download Product Spec Sheet >

View our Full Selection of Water Meter Pit Boxes >

***Minimum Order = 5 Units***

PRODUCT SPECS

  • Series:Water Meter Pit Boxes
  • Manufacturer: NDS

         ✔   Free Shipping

        ✎  Need a written quote?
              Request Online

        $  Volume Pricing on Large Orders

       ❔ Questions? Call (800) 583-4891


KEY FEATURES

  • Boxes built with a double wall at the top cover seat area
  • Cover seat area features structural support ribs for durability
  • Available in a variety of sizes: Rectangular: 14X19 in., 13X20 in., 10X15 in., 13X24 in., and 17X30 in.; Round: 6 and 16 in. Round
  • Covers available in solid or with meter doors in plastic or cast iron
  • Automatic meter reader (AMR) boxes available with top or bottom mounts
water-meter-pit-box.jpg__PID:59c51311-3a75-4a0a-97d0-7a8714df470c

NDS commercial grade meter boxes are built for durability and ease of use. Selection includes automatic meter reader (AMR) boxes and boxes with dual pipe slots; locking AMR covers with touch reader hole; and plastic or cast iron reader doors.

meterbox-1920x10802.jpg__PID:5f51c588-6769-465a-b79c-6bc415822691

APPLICATIONS

  • Protect water meter components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
  • Provide easy access to water meter readers to collect data
  • Use to protect water meter reader components

INSTALLATION & MAINTENANCE

  • Dig to allow for enough depth so the cover is flush with the surface; connect valve(s) and piping; add gravel for drainage before placing the box and cover in place
  • Periodically check for damage and replace as needed

MATERIALS & SUSTAINABILITY

  • Box and cover made of durable plastic treated with UV inhibitors
  • Made in the USA

SHIPPING

✔  All items ship for free

☏  Call: (800) 583-4891 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically ship within 1-5 business days if the order is placed before 12:00 noon EST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

nds-transit-map_07e382b8-f8c5-4c74-8bdd-0d90d0a2419a__PID:d0d295fc-215f-4a04-a3e0-7add9f4930b6

Water Meter Pit Guide: Selection, Sizing, Installation & Maintenance

This practical guide explains how to choose and install a Water Meter Pit—featuring our D1200-style model with a drop-in cover and a plastic reader port for fast, safe meter reads.

What is a Water Meter Pit? It’s an underground enclosure that protects the water meter from weather, traffic, and tampering while keeping it easy to access for utilities. In plain English: it keeps the meter safe, dry, and easy to read.

Water meter pit access near exterior building service line
Typical location of a Water Meter Pit near the service line

Product Spotlight: Water Meter Pit (D1200-Style)

The Water Meter Pit is engineered for dependable protection and quick access. Its black drop-in cover with a plastic reader port lets crews collect reads without removing the lid—reducing time on site and wear on the cover.

Dimensions 14" W × 19" L × 12" H
Design Black rectangular D1200-style meter pit box
Cover Drop-in lid with plastic reader port
Durability Weather-resistant construction for long outdoor service life
Applications Ideal for residential, commercial, and municipal systems
Plain English: The reader port means faster monthly reads and fewer lid removals—small feature, big time-saver.

How to Choose the Right Water Meter Pit

Sizing (technical): Verify internal clearances for the meter body, unions, valves, and AMR/AMI equipment. Sizing (simple): Ensure there’s comfortable working room so nothing binds or bends during maintenance.

Quick Selection Checklist

  • Meter fit: Confirm inside dimensions and depth for your meter and fittings.
  • Access speed: A reader-port cover shortens read and audit times.
  • Environment: Choose weather-resistant materials for freeze–thaw and UV.
  • Load rating: For sidewalks/driveways, confirm the required cover/box rating.
  • Compliance: Check local standards (e.g., D1200-style acceptance) before purchase.
Technician accessing a water meter pit safely using the reader port
Reader-port lids enable quicker, safer meter reads
Commercial site preparing grade and bedding for a water meter pit installation
Stable, level bedding is key to long service life

Installation Overview (Step-by-Step)

  1. Locate utilities: Call 811 and verify all underground services.
  2. Excavate: Dig the pit to design depth with room for drainage and bedding.
  3. Bedding: Place a compacted, level granular base (e.g., clean gravel) for support.
  4. Set the pit: Position so the lid sits flush with final grade; verify level.
  5. Connect service: Plumb meter and valves per local code; keep the reader port unobstructed.
  6. Backfill & compact: Backfill evenly in lifts to prevent settlement and shifting.
  7. Final grade: Ensure clear, even access to the lid for future reads.
Maintenance tip: Clear debris after storms and confirm the lid seats fully; re-check level after freeze/thaw cycles.

Case Study: HOA Retrofit Cuts Read Times & Post-Storm Callbacks

Project: A 120-home HOA replaced aging, flooded boxes with a standardized Water Meter Pit (D1200-style). Crews rebuilt bases with compacted gravel and adopted reader-port lids.

What Changed

  • Uniform D1200 footprint across all lots for consistent fit and training.
  • Compacted granular bedding to keep pits level and draining.
  • Reader-port covers to eliminate routine lid removal.

Results

  • ~25% faster reads: Monthly route times dropped as techs scanned through the port.
  • Fewer callbacks: Stable bedding and drainage reduced post-storm issues.
  • Lower wear: Less prying/lifting extended lid life and improved safety.
Takeaway: Standardizing on a weather-resistant Water Meter Pit with a reader-port lid delivers immediate efficiency and long-term reliability.

Buyer’s Tips & FAQs

What does “D1200-style” mean?
A standardized rectangular footprint widely accepted by utilities and municipalities—making replacements and approvals easier.
Why choose a reader-port lid?
It speeds up monthly reads and audits because crews don’t need to remove the cover—safer near roads and sidewalks.
Is this Water Meter Pit suitable for municipalities?
Yes. Weather-resistant construction, standard sizing, and reader-port access suit subdivisions and municipal systems.
What ongoing maintenance is needed?
Keep the lid and port clear of debris, verify the pit remains level after freeze/thaw cycles, and ensure the cover seats properly.

Summary

The Water Meter Pit provides durable, weather-resistant protection with a drop-in cover and plastic reader port that streamlines routine reads. Its 14" × 19" × 12" D1200-style footprint fits a wide range of residential, commercial, and municipal applications—keeping meters protected and accessible for years.
