Up to 600 PSI · Ultra Heavy-Duty
MegaDeck HD - Heavy Duty Composite Mat
Heavy-duty HDPE composite ground protection mats rated up to 600 psi, with aggressive traction for cranes and heavy equipment on unstable terrain.
Free shipping, all orders
Up to 600 psi load rating
Non-conductive composite
MegaDeck HD+ Calculator
Find out how many mats you need for your project — instantly.
Along the long dimension
Along the short dimension
Length of the single-row run

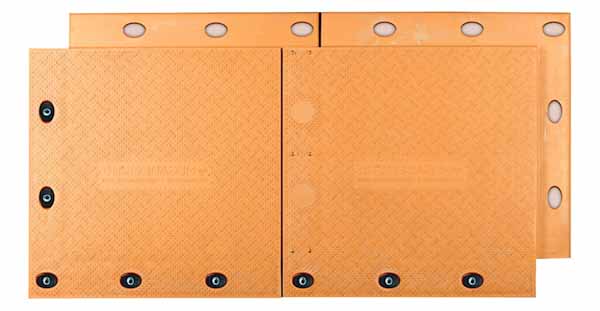

MegaDeck HD+ — Mat Specifications
Overall Dimensions: 7.5′ L × 14′ W × 4″ H | Overall Coverage: 105 sq ft per mat
Usable Dimensions: 6.5′ L × 13′ W | Usable Coverage: 84.5 sq ft per mat (flange-adjusted)
Weight: ~1,025 lbs per mat | Load Rating: up to 600 psi
Overall Dimensions: 7.5′ L × 14′ W × 4″ H | Overall Coverage: 105 sq ft per mat
Usable Dimensions: 6.5′ L × 13′ W | Usable Coverage: 84.5 sq ft per mat (flange-adjusted)
Weight: ~1,025 lbs per mat | Load Rating: up to 600 psi
Your Results
Mats Required
—
MegaDeck HD+ Mats
Coverage
—
square feet
Total Weight
—
lbs (~— tons)
Mat Grid
—
columns × rows
Actual Coverage
—
ft × ft
Layout Preview
What’s included in this order
MegaDeck HD+ Mats
—

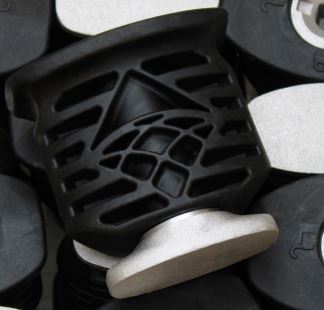

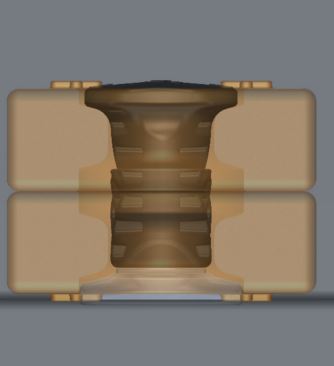

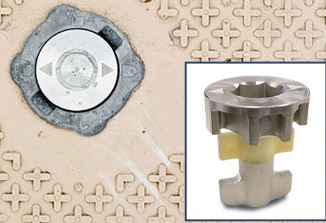

MDX Pins (8 per mat)
—

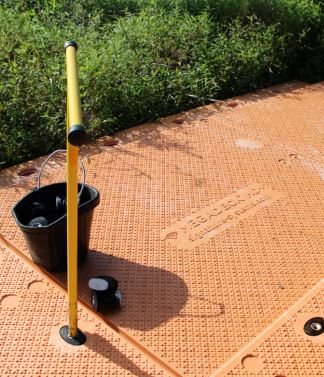

Signature Tool Kit (1 per 20 mats)
—
Questions
FAQ
Where is this product made?
The mats are made in the USA.
How do I install them?
See installation video above.
How long will shipping take?
All orders ship for free and ship out quickly. Transit time depends on your location.
Guide
A Helpful Guide to MegaDeck HD+ Mats: Heavy-Duty Ground Protection for Any Jobsite
When it comes to serious ground protection and creating stable temporary roadways, MegaDeck HD+ mats stand out as one of the most durable and high-capacity options on the market. Designed for heavy industrial projects, construction sites, and oil and gas access roads, these mats offer unbeatable strength, longevity, and safety. This guide will walk you through the key features of MegaDeck HD+ mats and include a real-world case study to demonstrate their value.
What Makes MegaDeck HD+ Mats Unique?
MegaDeck HD+ mats are engineered to handle extreme weights and create stable working surfaces in the harshest environments. They boast a weight-bearing capacity of up to 600 psi (86,400 lbs. per sq. ft.), making them ideal for supporting cranes, heavy equipment, and vehicle traffic on soft or unstable ground.
Unlike plywood, which can rot, crack, or warp, MegaDeck HD+ mats are built from composite materials that are non-conductive, chemically inert, and resistant to flammability (UL-94 HB rating). Their cross-ribbed internal structure ensures that weight is evenly distributed across each panel for superior stability and safety.
Key Benefits and Practical Features
- Superior Load Capacity: Supports extreme weights up to 600 psi / 86,400 lbs. per sq. ft.
- Cross-Ribbed Interior: Distributes weight evenly, preventing panel failure under heavy loads.

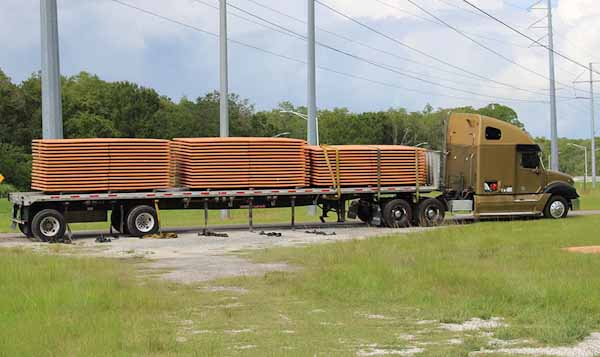

- Shipping Efficiency: Sized for maximum shipping — 40 mats fit in ISO containers and flatbed trailers.
- Easy Maintenance: Pressure-washable surface; resistant to most commercial cleaners.
- Environmentally Safer: Inert composite materials with no harmful chemicals.
- Flammability Resistant: UL-94 HB rating ensures added safety on job sites.
- Non-Conductive Platform: Safe for utility work around electricity.
Whether for temporary access roads, work platforms, or event flooring, MegaDeck HD+ mats deliver a dependable and reusable solution that outperforms wood and other materials.

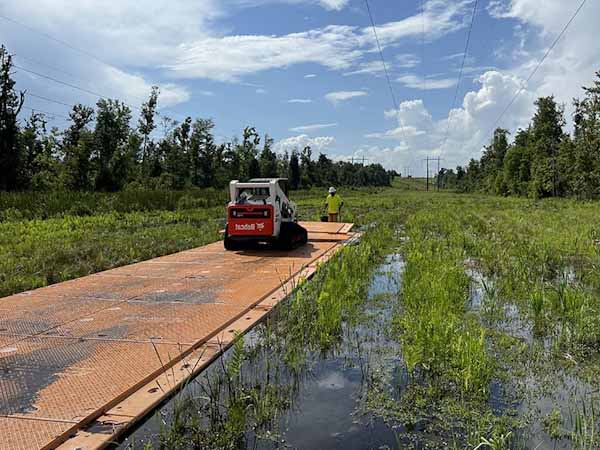

Case Study: Access Road for Heavy Equipment in Wet Conditions
Project: A construction firm needed to transport large cranes and heavy equipment across a wet, unstable field to reach a remote jobsite.
Challenge: The area was saturated from recent rains, making it impossible for trucks to travel without getting stuck or damaging the ground.
Solution: By deploying a network of interconnected MegaDeck HD+ mats, the team created a stable, heavy-duty roadway that supported the heaviest loads. The cross-ribbed design distributed the equipment's weight, and the mats connected seamlessly without gaps.
Results: The project was completed on time, with no vehicle delays or ground damage. After the job, the mats were cleaned and reused for the next project, reducing material costs.
Conclusion: Why Choose MegaDeck HD+ Mats?
If you're looking for a high-performance, reusable solution for ground protection and temporary roadways, MegaDeck HD+ mats offer unmatched strength, safety, and value. With superior load capacity, better environmental performance, and longevity that outlasts wood and other materials, MegaDeck HD+ is the trusted choice for demanding job sites. Contact us today to learn more about how MegaDeck HD+ mats can help on your next project.
Plan Your MegaDeck HD+ Layout
Use the calculator for an exact mat and hardware count, or request a quote and we'll help you find the right setup for your project.
