Geotex 701 - Nonwoven Geotextile Fabric - 12.5' x 360'

$1,592.97


FREE SHIPPING
SKU GT701.12.5

Geotex 701 is a nonwoven geotextile fabric that is made from high-quality polypropylene staple fibers that is needle-punched to form a dimensionally stable fiber network. This fabric is used to support separation and stabilization, subsurface drainage, filtration, and cushioning. This fabric meets AASHTO/NTPEP standards.

NOTE: Solmax (Propex) branded products are ineligible for return or order cancellation once the order has been shipped. If you would like to purchase an equivalent fabric which is eligible to be returned with a standard restocking fee please give us a call at (800) 583-4891.

PRODUCT SPECS

Model: Geotex 701

Sq Ft: 4,500

Weight: 214 lbs

Material:
Polypropylene nonwoven fabric



      ✔   Free Shipping

        ✎  Need a written quote?
              Request Online

        $  Volume Pricing on Large Orders

       ❔ Questions? Call (800) 583-4891


PRODUCT HIGHLIGHTS

  • Requires less aggregate during construction saving $50,000 per lane mile on average and reducing road thickness
  • Separates aggregate from soil, doubling the useful road life
  • Provide superior hydraulics and soil retention to support filtration
  • Mitigates dust in unpaved roads
  • Provides cushioning and protection for critical lining systems
  • Resists biological and chemical environments normally found in soils
  • AASHTO/NTPEP Certified
  • Reduces overall maintenance cost, saving up to 50% on road repairs
  • Use less natural resources – 1 truck of geosynthetic rolls = 850 truckloads of stone
  • Installs faster than traditional methods reducing overall construction time

SHIPPING

✔  All items ship for free

☏  Call: (800) 583-4891 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically ship within 1-2 business days if the order is placed before 12:00 noon EST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

Geotex Products Available:

FREQUENTLY ASKED QUESTIONS

Questions about our this product? Visit our FAQ section here.

Geotex 701 Case Study: Using GEOTEX® 701 For Denver International Airport Runways

Summary

The 6th busiest airport in the United States is the Denver International Airport (DIA) and there is no doubt that some distress is apparent on runways. 17L/35R is one of the most traveled runways at the airport and Denver needed to replace sections along with the connecting taxiways which was also showing signs of distressed pavement panels. They chose Propex GEOTEX® 701 to act as a bond breaker between the cement-treated subgrade and the new pavement. GEOTEX 701 is a polypropylene staple fiber with a needle-punched non-woven geotextile that provides separation between totally different materials and meets FAA specifications.

This was the first project Denver completed using stimulus money. It was easier for the contractor to comply with the Buy America clause in the stimulus package because GEOTEX is made in the US. They installed 130,000 square yards of GEOTEX 701 which shut down the runway for 90 days. The end result revealed a runway strong enough to accommodate the newest line of jumbo jets.

In A Nutshell -

Denver International Airport needed an American-made product to repair heavily traveled runways. The solution was GEOTEX® to separate the CTS from the new pavement. The project required 130,000 square yards of GEOTEX 701 to be installed using a Hilti gun and shot pins. The end result, the runway was strong enough to handle the newest line of large jets.

Features And Benefits

 Breaks the bond between CTS and concrete pavement, reducing stress in the concrete and improving the overall performance.Separating aggregate from the soil increasing the road’s life span and reduced maintenance costs.

Due to its easy installation, it saved on time and the cost of labor.It’s AASHTO/NTPEP CertifiedIt resists biological and chemical environments that are usually found in soil.Available in a range of styles to fit specific project requirements.

Airplane on Runway

Geotex 701 Project at Denver Airport

Nonwoven applications:

Nonwoven Geotextiles are absorbent fabrics that separate poor soils, provide a high flow, and at certain strengths, stabilize the subgrade. The needle-punch nonwoven geotextiles are made from polypropylene fiber and offer a felt-like texture. This geotextile fabric is known as a filter and drainage fabric.

Nonwoven geotextiles are used for landscaping projects and on construction sites. Some standard applications include:

  • Soil Separations
  • Pipe Wraps
  • Drainage Layers
  • French Drains
  • Soil Stabilization
  • Erosion Control
  • Asphalt Overlay

The application will decide what kind of nonwoven geotextile fabric will be needed. As an example, pipe wrap and French drain projects need a lightweight nonwoven fabric. Roadway stabilization requires a medium to heavyweight filter fabric.

Types of Nonwoven Geotextiles

The application will decide what kind of nonwoven geotextile fabric will be needed. As an example, pipe wrap and French drain projects need a lightweight nonwoven fabric. Roadway stabilization requires a medium to heavyweight filter fabric.

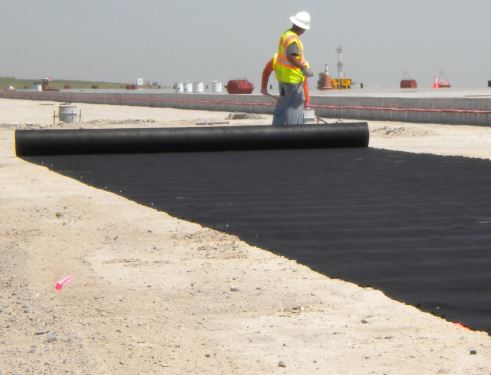

Construction Worker at Denver Airport

Non Woven Fabric Installed at Airport

Civil Nonwovens

The application will decide what kind of nonwoven geotextile fabric will be needed. As an example, pipe wrap and French drain projects need a lightweight nonwoven fabric. Roadway stabilization requires a medium to heavyweight filter fabric.

Lightweight

Lightweight nonwovens geotextiles are mostly used as a drainage and separation layer. The average applications include pipe wrap on road and utility projects, filter fabric for landscaping, and drainage fabric for retention and detention systems. The lightweight geotextiles range from 3.0 oz to 4.5 oz.

Medium Weight

Medium weight nonwoven geotextile fabrics are used for stabilization, separation, and drainage. These fabrics offer a better tensile strength than lightweight fabrics but have lower permittivity. In other words, they are stronger than lightweight geotextiles but not as absorbent.

The medium weight fabrics are great for drainage and an excellent choice for separating soils. When used for separation, medium-weight geotextiles prevent contamination between soil layers while allowing water to pass through the subgrade. This group is often used in combination with a geogrid to have maximum stabilization and separation on unstable subgrades.

Heavyweight

This nonwoven fabric works as a soft separating geotextile layer between rough aggregate and other geosynthetic structures. The fabric looks like felt and acts as a soft separating geotextile layer between rough aggregate and other geosynthetic structures including geo-membranes and liners that can be put in jeopardy if they are punctured, ripped, or torn. Heavyweight nonwoven fabrics are also used for stabilization under roadways.
