This pre-packaged Trench Drain Kit delivers everything needed for a high-strength, reliable trench drain installation—combining neutral-invert drainage with commercial-grade materials in a single bundle.

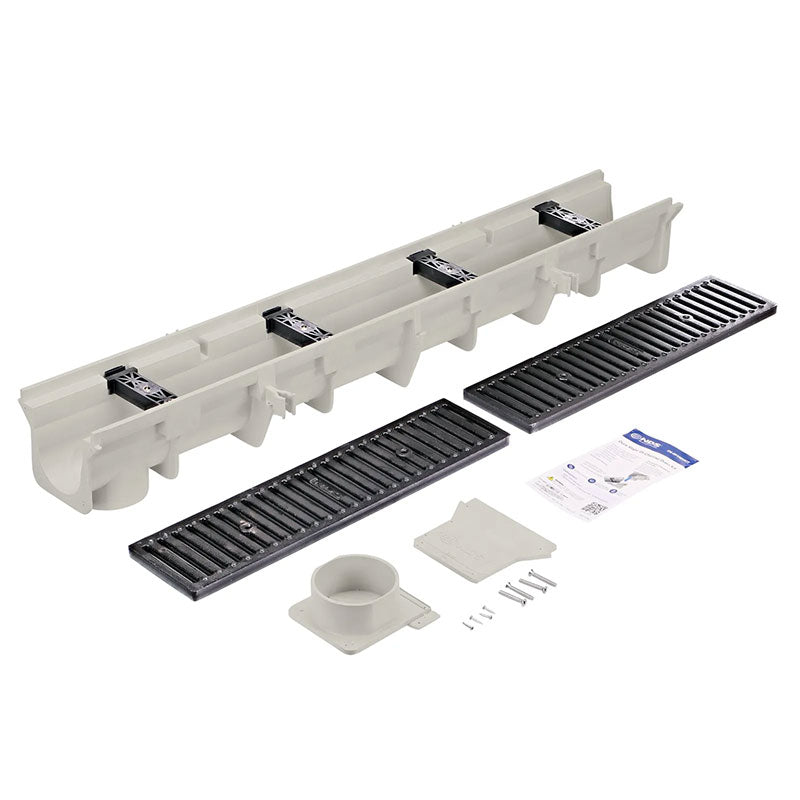

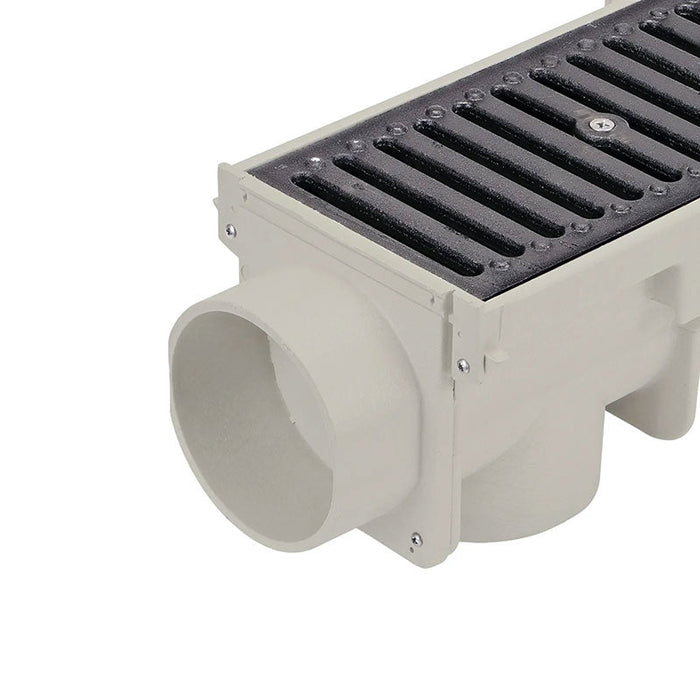

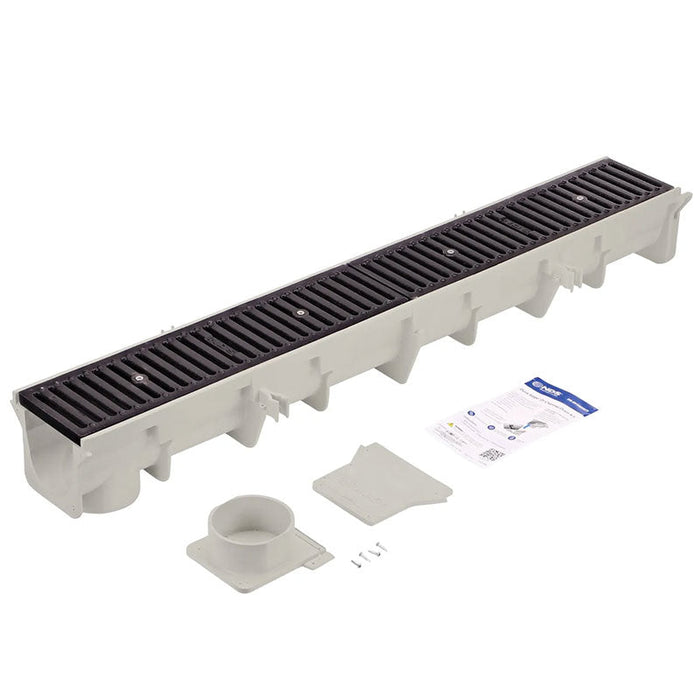

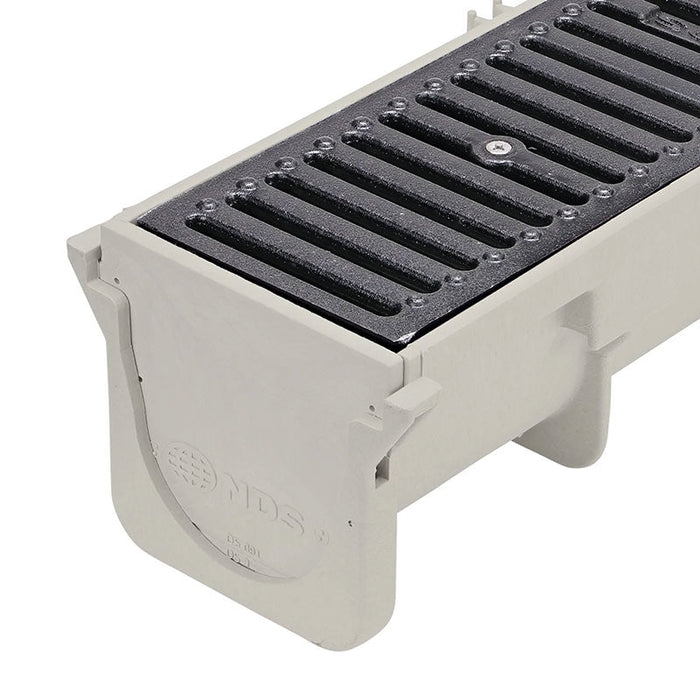

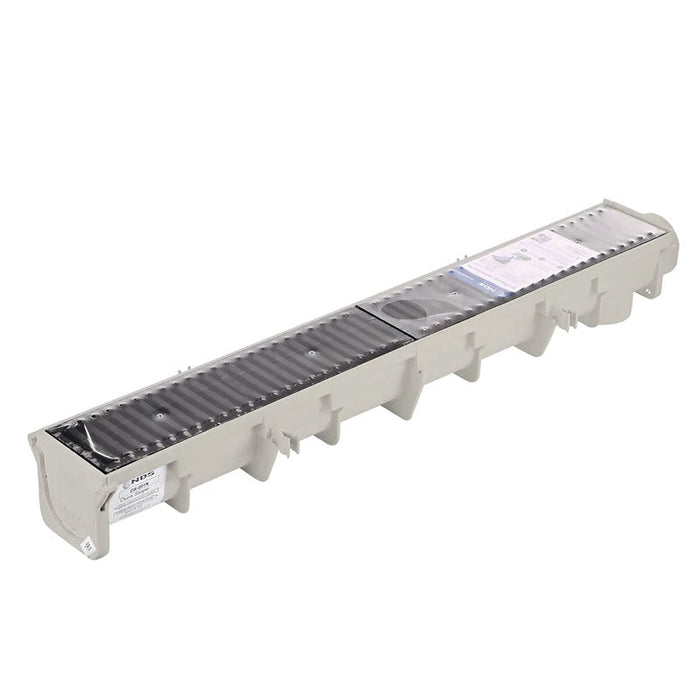

• Complete, Ready-to-Install Kit – Includes the neutral-channel section, two ductile iron grates with fasteners, end outlet, end cap, and grate locks—cuts down installation time and reduces parts to manage.

• Sturdy & Corrosion-Resistant Grates – Ductile iron grates offer enhanced strength and durability, suitable for heavier duty environments where metal performance is required.

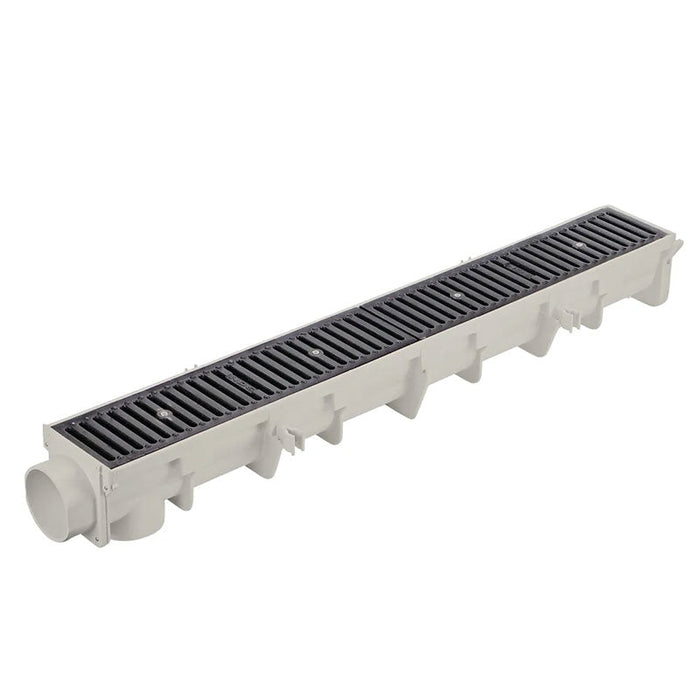

• Robust Channel Profile – 6″ wide × 4 ft long with a 4.3″ invert depth and 6.1″ total depth—provides solid hydraulic capacity while being rugged in tough conditions.

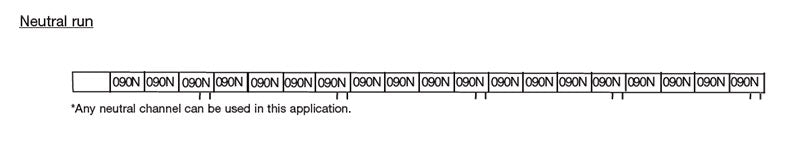

• Neutral Invert Design – Flat base (no built-in slope) makes this kit ideal for installations where slope is minimal or precisely controlled.

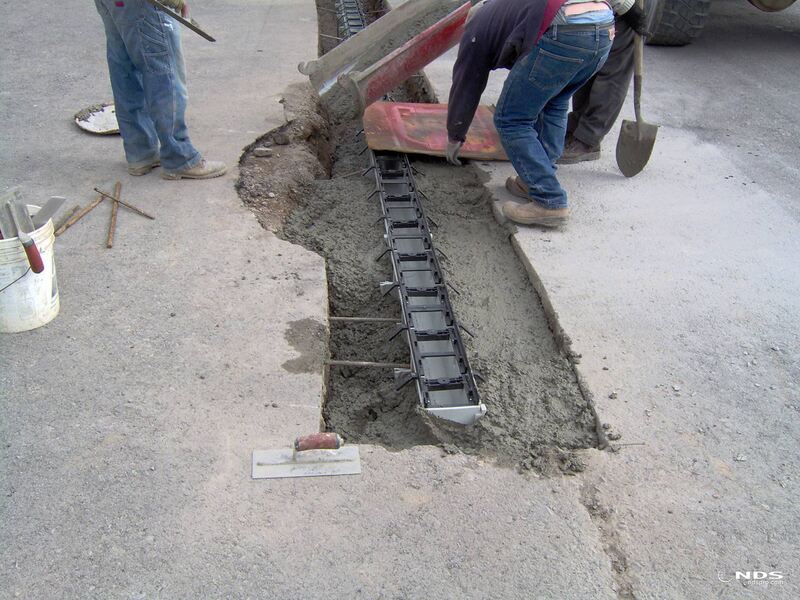

• Heavy Load Rating – The system is rated for H-20 vehicular load under proper installation; suitable for driveways, parking zones, patios, and other places expecting vehicular stress.

Steel Grate Option: Galvanized steel grates are also available as an accessory to this kit. Adding a steel grate will reduce the load rating to Class C. Two grates are required per channel.

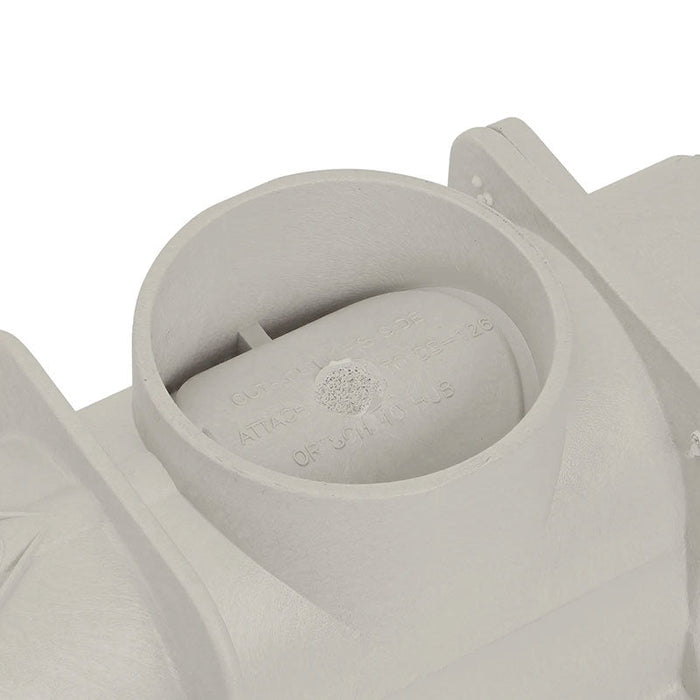

Note: It is recommended that a bottom drain is installed after each run of 5 connected channels. The bottom drain easily connects to the underside of the channel drain.
