ACO S200K PowerDrain - Trench Drain System
FREE SHIPPING

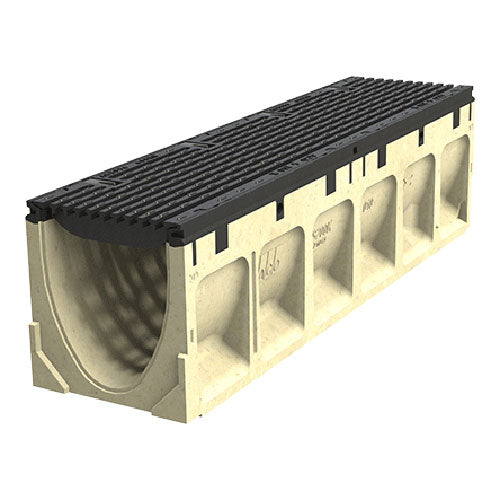

The ACO PowerDrain S200K is a rugged, 8‑inch (200 mm) wide trench drain system engineered for demanding commercial and industrial environments. Its polymer concrete body, reinforced with integrally cast ductile‑iron edge rails, delivers exceptional strength, chemical resistance, and long‑term durability.
Key Highlights:
-
High load performance – Rated to EN 1433 Load Class F, with proof loading up to 200,000 lb, while also offering Load Class E with ADA-compliant longitudinal grates.
-
Efficient drainage design – Built-in 0.5% slope and a V‑shaped invert enable rapid, reliable water evacuation.
-
Secure grate locking – Features the PowerLok® boltless locking system (or optional 4‑bolt version) and anti‑shunt lugs to keep grates firmly in place.
-
Modular & easy to install – Includes sloped and neutral channel units (1 m and 0.5 m), system numbering, knock‑outs every fifth unit, plus installation aids and shipping grooves for safer handling.
System Selection:
-
Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as catch basins and grates.
Note: ACO drainage products are subject to a $750 minimum order
Please Use the Order Form Below to Order ▼
