What Is Road Stabilization Fabric?

Short answer: It’s a strong woven sheet that goes under your gravel to stop the rock from sinking and mixing with the soil, so your road stays smooth and stable.

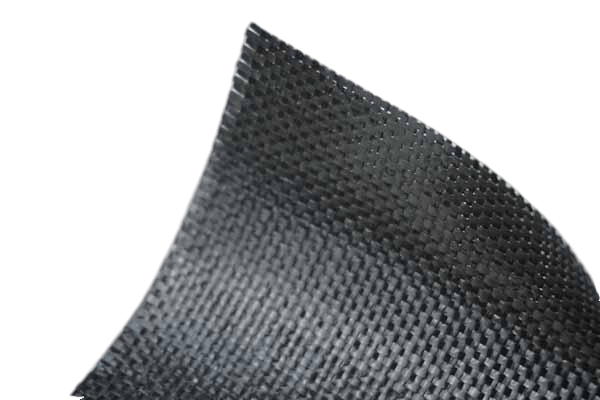

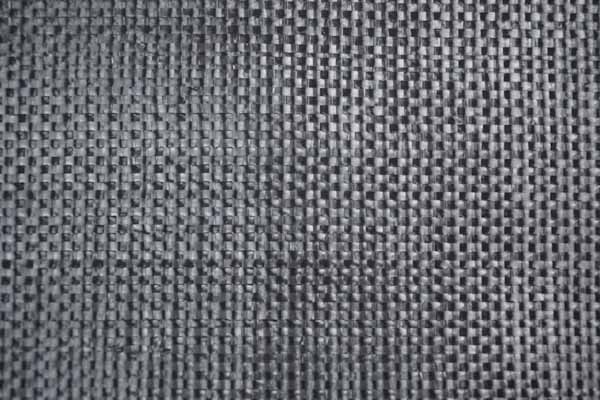

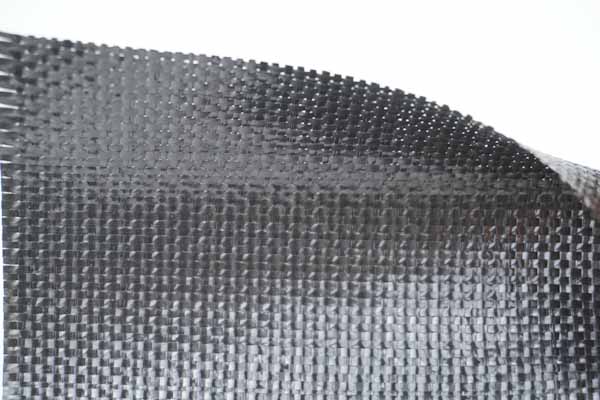

Technical definition: A heavy-duty woven geotextile made from 100% polypropylene (PP) with approximately 200 lb tensile strength. It resists UV deterioration (sunlight damage), is inert to common soil chemicals, will not rot or mildew, is non-biodegradable, and is resistant to insects and rodents. In many projects, it meets typical DOT specification requirements for separation and stabilization.

Why Use Road Stabilization Fabric?

• Prevents rutting & pumping: Keeps fines from pumping up into the aggregate during traffic and wet seasons.
• Reduces gravel migration: Rock stays in place longer, so you re-grade and top up less often.
• Saves base material: Often less aggregate is needed to hit the same performance target.
• Improves bearing capacity: Woven structure provides reinforcement in addition to separation.
• Long-lasting & durable: Excellent puncture and tear resistance; stable against rot, mildew, pests.
• Versatile: Ideal for gravel roads, driveways, parking lots, paver bases, and construction entrances.

How Road Stabilization Fabric Works (Separation + Reinforcement)

Separation: The fabric forms a barrier between soft subgrade and the gravel base so the two materials don’t mix. Layman’s view: it stops your rock from “disappearing” into the mud.

Reinforcement: The woven structure adds tensile strength that spreads vehicle loads over a wider area. Layman’s view: it’s like a strong net that shares the weight so the ground doesn’t give way.

Step-by-Step Installation Guide

1. Evaluate & mark: Mark the roadway alignment and drainage paths; confirm culvert/outlet locations.
2. Shape subgrade: Grade to remove high spots and fill low areas. Remove soft organics. Aim for a smooth, firm surface.
3. Compact subgrade: Light to moderate compaction improves support and uniformity.
4. Roll out fabric: Unroll the woven PP fabric flat and tension-free, oriented along the road. Overlap seams 18–24 in (greater in very soft soils).
5. Secure: Use sod staples or aggregate pinning at overlaps and edges to prevent movement during placement.
6. Place base aggregate: Carefully place the first lift (typically 4–6 in) to avoid wrinkling or tearing. Do not drive equipment directly on bare fabric.
7. Compact each lift: Compact to spec; add additional lifts until design thickness is reached.
8. Finish surface: Shape crown/cross-slope for drainage; add surface course as required.

Real-World Case Study: Private Farm Driveway Upgrade

Project: 900-ft gravel driveway, 12 ft wide, Ohio clay subgrade with seasonal saturation.

Problem: Annual rutting and gravel loss during spring thaw; frequent grading required (4× per year).

Solution: Installed woven PP road stabilization fabric (≈200 lb tensile) over shaped and compacted subgrade with 24 in overlaps in soft zones. Placed 8 in base in two lifts, then a 2 in surface course.

• Aggregate savings: ~15–20% less base material vs. previous rebuild without fabric (target section achieved with fewer tons).
• Maintenance reduction: Grading dropped from 4× to 1× in the first year.
• Performance: Noticeably fewer ruts and reduced gravel migration after major rain events.

Takeaway: Separation + reinforcement from woven fabric delivered a stronger section with less material and fewer callbacks.

When to Choose Woven vs. Nonwoven Geotextile

Tech Specs (Quick Reference)

Get Started

Ready to stabilize your gravel road or driveway? Choose a heavy-duty woven polypropylene fabric with ~200 lb tensile strength for reliable separation and reinforcement.
