MegaDeck Mat - Heavy Duty - 7.5' L x 14' W

$4,032.97

FREE SHIPPING
SKU MD7.5

MegaDeck HD composite matting is the strongest, best engineered interlocking panel system on the market today. MegaDeck HD, heavy-duty composite mats are designed specifically for high-traffic work sites, such as power transmission, oil rigs, and construction sites. MegaDeck HD creates a stable platform or portable roadway anywhere in the world, regardless of climate or terrain.

For MegaDeck installation, it is recommended to have 8 SignaRoad pins per mat.

PRODUCT SPECS

Model: MegaDeck

Dimensions: 7.5' L x 14' W x 4" H (105 SF)

Materials:
HDPE with special impact modifiers and fillers to accommodate thermal
expansion, incorporate UV resistance, and add anti-static properties.

Weight: 1,092lbs

Weight Loading: 600 psi (86,400 lbs per sq ft)


      βœ”   Free Shipping

        ✎  Need a written quote?
              Request Online

        $  Volume Pricing on Large Orders

       ❔ Questions? Call (800) 583-4891


PRODUCT HIGHLIGHTS

  • Superior Weight-Bearing Capacity: MegaDeck HD composite mats have a weight-bearing capacity of up to 600 psi / 86,400 lbs. per sq. ft.
  • Strong Support Structure: MegaDeck HD’s cross-ribbed interior distributes weight across the entire panel. These mats are not intended for bridging.
  • Maximum Shipping Efficiency: MegaDeck HD mats are properly sized to easily ship 40 mats in standard ISO containers and flatbed trailers.
  • Easy Cleaning: MegaDeck HD mats can be cleaned using a high-powered pressure washer. Most commercial cleaning agents will not damage the surface, but consideration should be given to environmental concerns.
  • Flammability Resistance: UL-94 HB Rating.
  • Non-Conductive: MegaDeck HD composite materials are inert, providing a non-conductive safe working platform.
  • Better than Wood: Unlike plywood, MegaDeck HD will not warp, rot, crack, or delaminate, and contains no unsafe chemicals.

SHIPPING

βœ”  All items ship for free

☏  Call: (800) 583-4891 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically ship within 1 business day if the order is placed before 2PM Eastern Time. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.



MegaDeck Case Study

This product proved its worth on a 9-mile temporary roadway and 30,000 sq. ft. platform in the Chesapeake Bay backwaters. The Utility Construction Services of Elkton, Maryland chose this product when planning for this 9-mile transmission line repair and replacement project in the backwaters of the Chesapeake Bay. Limited access and changing tidewaters made this project very challenging.

Megadeck product diagram

MegaDeck HD

MegaDeck HD

MegaDeck HD was used to build the roads through the marsh, placing the mats in 1-mile increments. At the end of the road, a 30,000 sq. ft. platform was created to support more than 500,000 lbs of equipment to install a new 220 ft monopole. The platform was installed less than 30 ft from the Nanticoke River.

The platform was not only strong, but very stable with a fleet of bucket trucks, cranes, and loaders to replace the electrical transmission tower. Utility Construction Services used almost 2,000 MegaDeck mats on this project for the electrical utility AUI Power in the Mid-Atlantic.

On a daily basis, construction sites have faced many challenges. They deal with tight schedules and therefore can't wait on weather delays, higher costs of projects, labor shortages, and changing environmental safety requirements. Composite mats are designed to help overcome these daily obstacles by providing safe, stable site access over extremely soft and sensitive ground conditions while trying to reduce your project costs.

Ways Composite Construction Mats Can Improve Site Access While Reducing The Costs

On a daily basis, construction sites have faced many challenges. They deal with tight schedules and therefore can't wait on weather delays, higher costs of projects, labor shortages, and changing environmental safety requirements. Composite mats are designed to help overcome these daily obstacles by providing safe, stable site access over extremely soft and sensitive ground conditions while trying to reduce your project costs.

Composite Mat Applications

These mats are made of High-Density Polyethylene/ They are used to create a safe, stable working surface or dependable access to a remote site. These heavy-duty mats can be used for many applications including:

  • Access over extremely soft ground
  • A temporary roadway
  • Oil rig mats, crane mats, and track mats
  • Drill site liner protection
  • Staging sites, working platforms, laydown yards
  • Ground protection for sensitive areas
  • Protection of prepared subgrade
Chemical tank sitting on Megadeck Construction Mat platform, Crane driving over Megadeck temporary road

MegaDeck used as construction platform and for temporary roadway

MegaDecks HD Will Make Your Job Easier

These heavy-duty mats are created for high-traffic sites such as power transmission, oil rigs, and construction sites. Large ground protection mats offer a stable platform or a portable roadway anywhere in the entire world. It doesn't matter what the climate is and will require minimal ground preparation over grass, gravel, soil, concrete, asphalt, mud, and sandy soils.

Signature Systems’ could not be happier with the performance of the MegaDeck HD system. They use these mats every day in some of the harshest conditions in the oil and gas industry and the mats continue to impress one and all.

Better Environmental Care

Traveling across private property to repair power lines or access remote job sites? Megadeck heavy-duty composite mats protect vegetation and control soil compaction, saving you costly reconstruction efforts after the job is done. The material won’t absorb toxins, chemicals or invasive species or transfer contaminants to other job sites or storage facilities.

Unlike wood mats, our ground protection mats  will not warp, rot, crack or delaminate, allowing for long-term installations and up to 10 years of reuse. Save time and expense by washing and reusing instead of throwing away damaged wood. Installation is also faster compared with wood mats

These mats are manufactured using partially recycled materials to reduce both cost and unnecessary waste.

Tan colored Megadeck Ground Protection Mats on waterfront work  platfrom

Composite MegaDeck Mats on platform

Composite Mats For The Safety Of Crews And Equipment

When workers and heavy equipment must navigate rough terrain or unstable swamps or access to remote areas, safety should be first and foremost on your list. Composite mats offer a safe, non-shifting, or slipping platform to reduce the risk of accidents while moving over wet, muddy, soft ground conditions.

The overlapping flanges and a secure connection system created a continuous surface to prevent separation under the weight of heavy rolling loads.

Spend Less Time Prepping Your Site

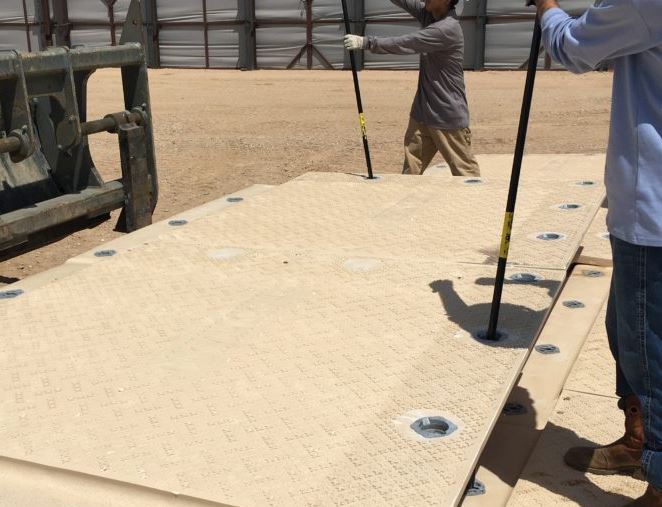

You can install roadways or work platforms quickly to reduce labor costs and spend your time concentrating your time and efforts on the job at hand. Connect panels easily and in various configurations using a T-bar tool. Overlapping flanges will make assembly fast and straightforward. The strong locking system offers a secure connection of mats on heavy-duty job sites.

You will prevent injuries and damage to expensive equipment on your job site. These mats offer a stable platform or roadway for the heaviest cranes and construction equipment. The cross-ribbed interior distributes weight across the entire mat with a weight capacity of 600 psi or 86,400 lbs per square foot.

FREQUENTLY ASKED QUESTIONS

Questions about our this product? Visit our FAQ section here.
